Skilled Plumbing & HVAC Services

Ductless Mini-Splits in Vineland

How Do Ductless Mini-Splits Work?

The easy answer is "pretty great!"

Single or multi-zone systems. Heating and cooling or just cooling. Whatever your needs, wherever your space, however you use it, Carrier® Ductless systems offer customizable solutions that are efficient and quiet.

Download the Product Guide


Schedule a Free Consultation

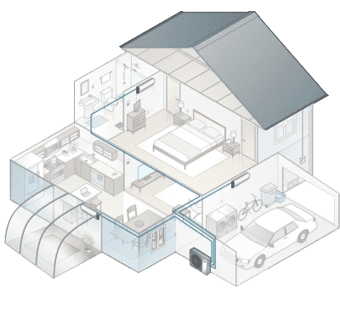

Here’s How Ductless Works

Ductless mini splits work by sending refrigerant that is either cooled or heated directly to the unit that handles the air. The unit can be mounted either to your home’s walls or to the ceiling. Ductless “mini-splits” are also known as ductless splits.

Ductless system

This is how ductless works in a single room:

  1. The unit will either cool down or heat the air using refrigerant. It will then work to push the chilled air to where you need it in the space.

  2. Electrical lines and refrigerant will send air from the outdoor unit to the indoor unit through an opening in the wall, measuring around 3”.

  3. The heat pump used in Carrier® units will either warm up or cool down refrigerant and send it through the air handler. This air handler keeps the temperature of the room stable, and knows when to send the conditioned air to parts of the room that need it most.

Or if you're using ductless as a whole home solution, up to 9 indoor units can be installed using the same outdoor unit.


The Components of a Ductless System

  • Indoor Unit: Also referred to as an evaporator or air handler, this can either be a high wall, low wall (above) or ceiling unit. There's even a ducted option.
  • Line Sets: The line sets consists of a power cable, condensate drain, refrigerant and suction tubing all connected to the indoor unit through a 3" hole.
  • Outdoor Unit: Each outdoor unit, or condenser, can interface with up to 9 indoor air handler units and is designed to tolerate the weather and elements.

Zoning Options That Help Save You Money

Single Zone

Ductless air conditioners and heat pumps can be installed so that one indoor unit corresponds to one outdoor compressor. The compressor carries refrigerant and power to the interior unit via a small pipe, running through a small opening, installed with very little impact to your home.

Multi-Zone

One outdoor compressor can power up to nine indoor units, each separately controlled by a wireless remote, offering you flexible options for configuring your comfort solutions. You can even choose to add units to your compressor in the future after you’ve installed just two indoor units (depending on the maximum number of connectable units), allowing for more streamlined expansion or renovation of your home as time and budget allow.


INVERTER Technology

Ductless systems from Carrier use INVERTER technology, operating at variable speeds, which results in more-even temperature control, greater energy savings and powerful dehumidification. The compressor speed adjusts automatically, much like a car on cruise control, so the system isn’t constantly running at maximum capacity and only draws energy when it’s needed.

INVERTER technology


Multiple Ways to Control

When it comes to monitoring or adjusting the temperature in your home, you have plenty of options.

Each indoor unit comes with its own remote control. Also, Carrier® offers a variety of thermostat options; even the option to control your heating and air conditioning from virtually anywhere with a smart phone.

Ductless at Home


Multiple Ways to Save

Mini Split AC with money

From the easy, hassle-free installation to eliminating your need for fossil fuels, there are multiple ways that ductless can help you save on home energy costs. Ductless also gives back, in energy efficient savings!

Ductless Advantages

Ductless works in your home or your office! Call our Vineland heating and air conditioning team at Ben’s ProServ today for more info.

Ductless at Home

Ductless at Work
